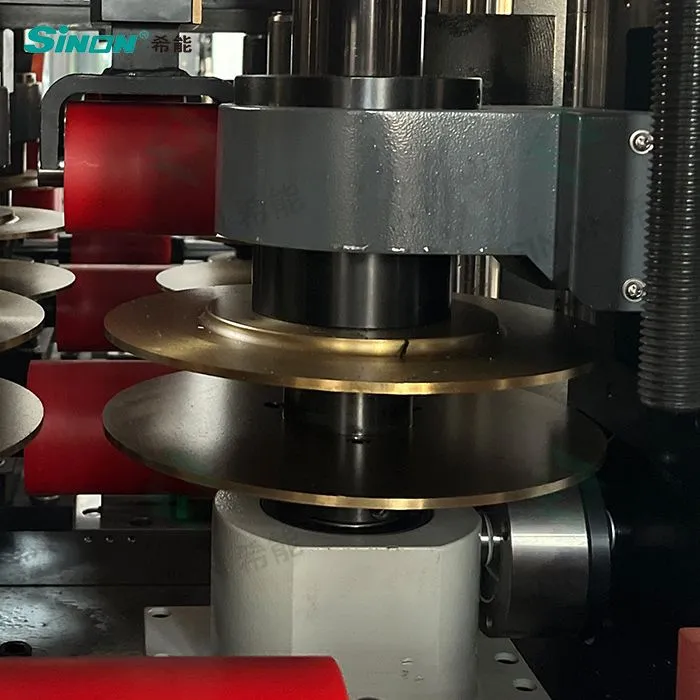

11 Axis CNC Thermal Break Crimping Tshuab

Nws yog tus yuam sij ntawmthermal tawg sib dhos kab. Tom qab pub sawb los ntawm CNC thermal so knurling tshuab, kev sib txuas ntawm profile thiab rwb thaiv tsev sawb tsis nruj, yuav tsum tau siv lub tshuab dov los ua kom lawv sib xyaw kom nruj. Siv 3 txheej ntawm lub log nyuaj los nias lub txhuas extrusion profiles nrog cov rwb thaiv tsev kub. Yog li lub tshuab no tseem hu ua thermal so dov tshuab.

1. CNC khotag nrho lifting los yog tus kheej lifting.

2. Qhov siab ntawm 6 sab sauv crimping phaj kub-insulating strips yog tag nrho servo tswj.

3. Tag nrho cov profile qhov siab muaj siab CNC nco.

4. Tag nrho11-axis CNC system yog qhov yooj yim thiab yooj yim rau kev khiav lag luam. Yog tias cov khoom tsim tawm thiab hom profile tsis muaj ntau, koj tuaj yeem xaivtxheem thermal tawg crimping tshuab

5. Nws tuaj yeem siv rau txhua qhov profile (xws litshwj xeeb-zoo li tus profiles, siab thiab qis theem profiles, tsis ncaj ncees lawm profiles, lwm.

6. Ib-khawm pib duathaum hloov cov profiles, tshem tawm qhov xav tau ntawm phau ntawv hloov kho, ua kom nrawm dua thiab ruaj khov.

7. Servo motorsthiab linear qhia kom muaj kev ruaj ntseg thiab precision.

8. Nruab nrogcode scanning phom ntaus ntawv, uas tuaj yeem luam QR cov lej thiab luam theej cov lej nkag mus rau qhov program. Kev ua haujlwm yog yooj yim thiab ceev.

9. Ntxiv lojrauuch screen ua haujlwm.

10. Lub vijtsam ua haujlwm tuaj yeem txav tau yooj yim rau kev ua haujlwm yooj yim.

11. CEtau ntawv pov thawj

Fais fab mov

380V / 50Hz lossis customized

Main Lub cev muaj zog

9 kws

Roller disc txoj kab uas hla

200-240 hli

Pub ceev

0-60m/min

Zuag qhia tag nrho lifting qhov siab ntawm workbench

0-150 hli

3 txheej ntawm dov phaj dav

0-170 hli

Rolling phaj sib nrug

8-100 hli

Clamp nylon roller lifting qhov siab

0-260 hli

Ua Profile Loj Max (W * H)

200 * 280 hli

Contour Dimension

2000 * 1800 * 1700 hli

Qhov hnyav

1600 Kg
