THERMAL BREAK ASSEMBLY TSHUAB RAU PROFILE (Ob QAUV)
Thermal Break Machine Taw Qhia:
Lub tshuab ua kom sov cua sov yog siv los tsim cov cua sov thaiv cov txheej txheem txhuas, suav nrog ob lub tshuab: tshuab tshuab nrog yas pluaj tso rau hauv, tshuab ntxhua khaub ncaws. Cov khoom tiav raws li hauv qab no:
Koj tuaj yeem pom tias ob daim ntawm txhuas qhov txuas tau txuas nrog los ntawm polyamide sawb. Aluminium tuaj yeem hloov cua sov lossis txias tau yooj yim heev, nws cov thermal conductivity siab. Tab sis polyamide strip's thermal conductivity qis heev, tom qab ntawd tuaj yeem thaiv qhov cua sov lossis txias hloov pauv los ntawm txhuas.
Cov khoom siv raw ntawm polyamide sawb yog 75% nylon thiab 25% iav-fiber, peb hu PA66 GF25 lossis polyamide
Muaj ntawm
1 teeb ntawm lub tshuab knurling nrog cov kab txaij pub khoom
1 teeb ntawm lub tshuab dov
Lub peev xwm niaj hnub yog 5 ~ 6 Tons ib 10 teev
knurling tshuab nrog strip feeder device
(1) Cov Kev Ntsuas ：
Hwj chim Mov | 380V/50Hz |
Lub Hwj Chim Tag Nrho | 1.1 kwv |
Knurling riam | 100 hli |
Machinable Profile Tshooj | 200*250 hli |
Profile Txhawb Txee | 460*5000 hli |
Contour Dimension | 1000*1200*1550 hli |
Qhov hnyav | 600 Kg |
(2) Lub hom phiaj tseem ceeb:
Nws yog qhov feem ntau yog txhawm rau sab hauv sab hauv ntawm qhov tsis zoo ntawm cov choj tawg aluminium profile los ntawm cov cua sov rwb thaiv tsev sawb lossis cov yas yas txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhawm rau txhim kho aluminium profile thiab cov cua sov rwb thaiv tsev. Nws tau nruab nrog cov cuab yeej tshwj xeeb clamping pneumatic. , Nws tuaj yeem paub" txaij thiab thaij duab thaum qhib cov hniav&"; |
(3) Nta
1.Thaum npog stent thiab cov cuab yeej tho qhov, nws tuaj yeem paub" xov thiab lo zaj duab xis thaum qhib cov hniav" ;. 2.Plastic cov menyuam hauv qab rab riam: cov khoom siv: zoo polyurethane, tawv-hnav 3.Kev siv txoj kab tsheb ciav hlau hauv tsev, Schneider Electric, kev ua haujlwm ruaj khov dua. 4.Qhov kev txhawb nqa qis yog ib nrab-thiab-ib nrab kho tau yam, thiab qhov siab ntawm ib nrab-puag ncig tuaj yeem hloov kho tus kheej. 5. Ua haujlwm nrawm tuaj yeem tswj hwm. Nws muaj cov yam ntxwv ntawm kev yooj yim op-eration thiab ua haujlwm siab 6.Kev siv tshuaj txau yas txau kho, khawb-resistant thiab zoo nkauj |

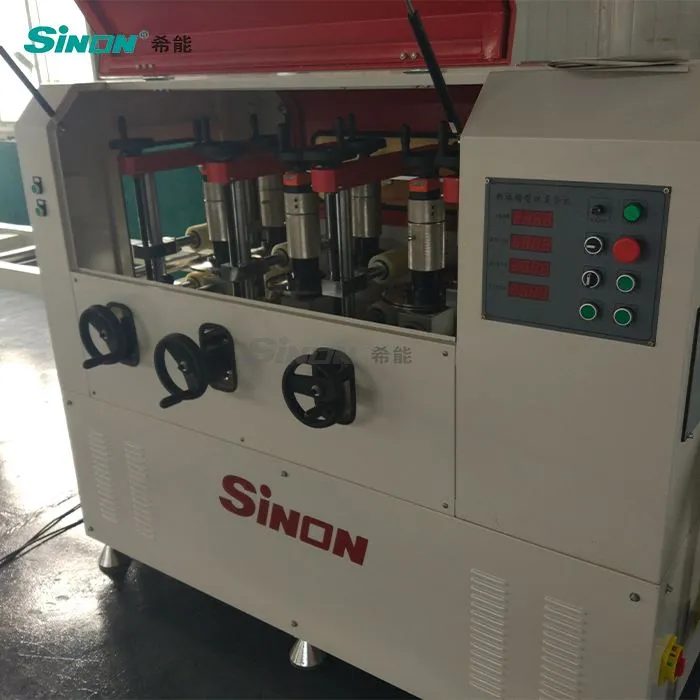

Dov (crimping) tshuab
(1) Cov Kev Ntsuas ：
Hwj chim Mov | 380V/50Hz |
Lub Cev Muaj Zog Loj | 2.5 kwv |
Ib qho dov disc qhov siab hloov kho ntau yam | 0-50 hli |
Pawg dov disc qhov siab hloov kho ntau yam | 0-150 hli |
Pub Ceev | 0-60m/min (stepless kuj tsis paub meej zaus ceev kev tswj los ntawm zaus converter) |
Max Profile Loj | 150*200 hli |
Profile Txhawb Txee | 460*5000 hli |
Contour Dimension | 1600*1000*1600mm |
Qhov hnyav | 1000KG |
(2) Lub hom phiaj tseem ceeb:
Tom qab pub cov kab txaij, sib xyaw ua ke ntawm qhov profile thiab kab txaij tsis nruj, xav tau siv lub tshuab ntxhua khaub ncaws kom lawv sib koom ua ke. Siv 3 txheej ntawm lub zog tawv lub log kom nias lub txhuas hlau txuas nrog cov cua sov ua kom pom tseeb. Pawg 1: Kev taw qhia thiab ua ntej dov (crimping) Pawg thib 2: dov (crimping) Pawg thib 3: ncaj (kab rov tav thiab ntsug) |
(3) Nta
1.Txhua lub log txav tau tuaj yeem hloov kho ntawm nws tus kheej (nce thiab nqis, sab laug thiab sab xis), thiab lub siab tau tshwm sim los ntawm peb qhov ntsuas siab digital 2.Three txheej ntawm cov hlau hlau los ua ke cov hlua nrog txhuas profile nruj nreem, qhov siab nce los ntawm thawj txheej mus rau txheej thib peb, kom tsis txhob muaj kev puas tsuaj vim yog ob qho loj thiab nrawm heev. 3.Qhov thib peb lub log tuaj yeem ncaj thaum lub sijhawm txheej txheem txhawm rau txhawm rau ua kom muaj kev sib luag thiab ncaj ntawm cov cua sov rwb thaiv tsev profile 4.Txhua kev hloov chaw ua haujlwm: tag nrho kev nqa ntawm lub rooj ua haujlwm tau pom los ntawm plaub lub ntsia hlau nqa, thiab ntsuas lub ntsuas ntsuas digital tau teeb tsa, thiab cov duab raug yog tsawg dua 0.01 hli. 5.Taiwan txoj kab tsheb nqaj hlau, Schneider cov khoom siv hluav taws xob, thiab cov ntsia hlau raug lees paub. 6.Kev siv tshuaj txau yas txau kho, khawb-resistant thiab zoo nkauj. |
