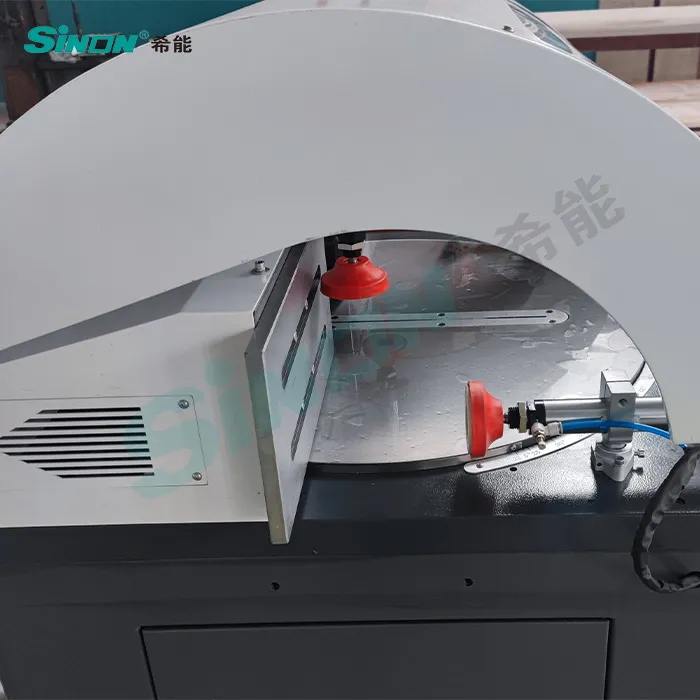

Cov Khoom Piav Qhia ntawm Ib Lub Taub Hau Sawing Tshuab
Nrhiav rau ntau yam thiab txhim khu kev qha sawing tshuab rau koj cov kev xav tau txiav? Peb Lub Taub Hau Ib Leeg Sawing Tshuab yog qhov kev daws teeb meem zoo tshaj plaws! Nrog cov yam ntxwv siab heev thiab muaj peev xwm txiav tau meej, lub tshuab no yog tsim los ua kom tau raws li koj qhov kev txiav ntau yam. Cia peb tshawb nrhiav nws cov yam ntxwv tseem ceeb:
Yooj yim kho lub kaum sab xis ntawm 25 mus rau 155 degrees siv cov duab digital, muab qhov yooj yim tshaj plaws rau koj cov haujlwm txiav.
Txuag lub sijhawm thiab kev siv zog nrog lub kaum sab xis kho kom yooj yim uas tso cai rau kev kaw nrawm ntawm 45 lossis 90 degrees rau kev txiav kom zoo.
Ntau ruaj khov, siab dua txiav precision.
3. Loj Saw Hniav Diameter: Nrog rau 500mm saw hniav txoj kab uas hla, peb lub tshuab muab kev txiav kom huv si thiab du, ua rau nws tsim nyog rau kev txiav cov khoom sib txawv.
4. Dual Support thiab Measuring Racks: Nruab nrog kev txhawb nqa racks ntawm ob sab, peb lub tshuab muab kev txhawb nqa ruaj khov rau kev ua haujlwm ntev ntev thaum txiav. Kev ntsuas racks xyuas kom meej thiab meej ntsuas.
5. High Precision thiab Durability: Ua kom kawg, peb lub tshuab nta kev tsim kho thiab cov khoom zoo, ua kom ntseeg tau kev ua tau zoo rau xyoo tom ntej.
Hauv kev xaus, peb Lub Taub Hau Ib Leeg Sawing Tshuab yog ib qho kev txhim khu kev qha thiab muaj txiaj ntsig zoo nrog cov yam ntxwv siab heev rau kev txiav txiav. Txawm hais tias koj xav tau txiav cov ces kaum, kho cov ces kaum sai sai, lossis ua haujlwm nrog ntau yam ntaub ntawv, peb lub tshuab tau txais koj them. Kev nqis peev hauv peb Lub Taub Hau Ib Leeg Sawing Tshuab niaj hnub no txhawm rau txhim kho koj cov haujlwm txiav!
Khoom Parameters ntawm Ib Lub Taub Hau Sawing Tshuab
|
Hom qauv |
LJZF500 |
|
Default input zog qhov chaw |
380V 50Hz 3P |
|
Tag nrho lub zog |
2.5 KW TSI |
|
Ua haujlwm cua siab |
0 5-0.8MPa |
|
Tsav kev sib hloov ceev |
2800 r / min |
|
Cutter pub ceev |
0-3m/min |
|
Txiav dav |
Max 220 hli |
|
Txiavqhov siab |
Max 150 hli |
|
Txiav lub kaum sab xis |
25 degree - 155 degree |
|
Rov qab nrhiav qhov ntev kam rau ua |
± 0.20mm |
|
Txiav profile nto dav hlau |
Tsawg dua los yog sib npaug rau 0.10 mm |
|
Txiav profile nto roughness |
12.5 Nws |
|
Dimension |
1100*1100*1600（L*W*H） |
|
Qhov hnyav |
4 16kg |
|
Positioning rooj |
3500*680*1600（L*W*H） |
|
Profile sawv rooj ntev |
4000 hli |
